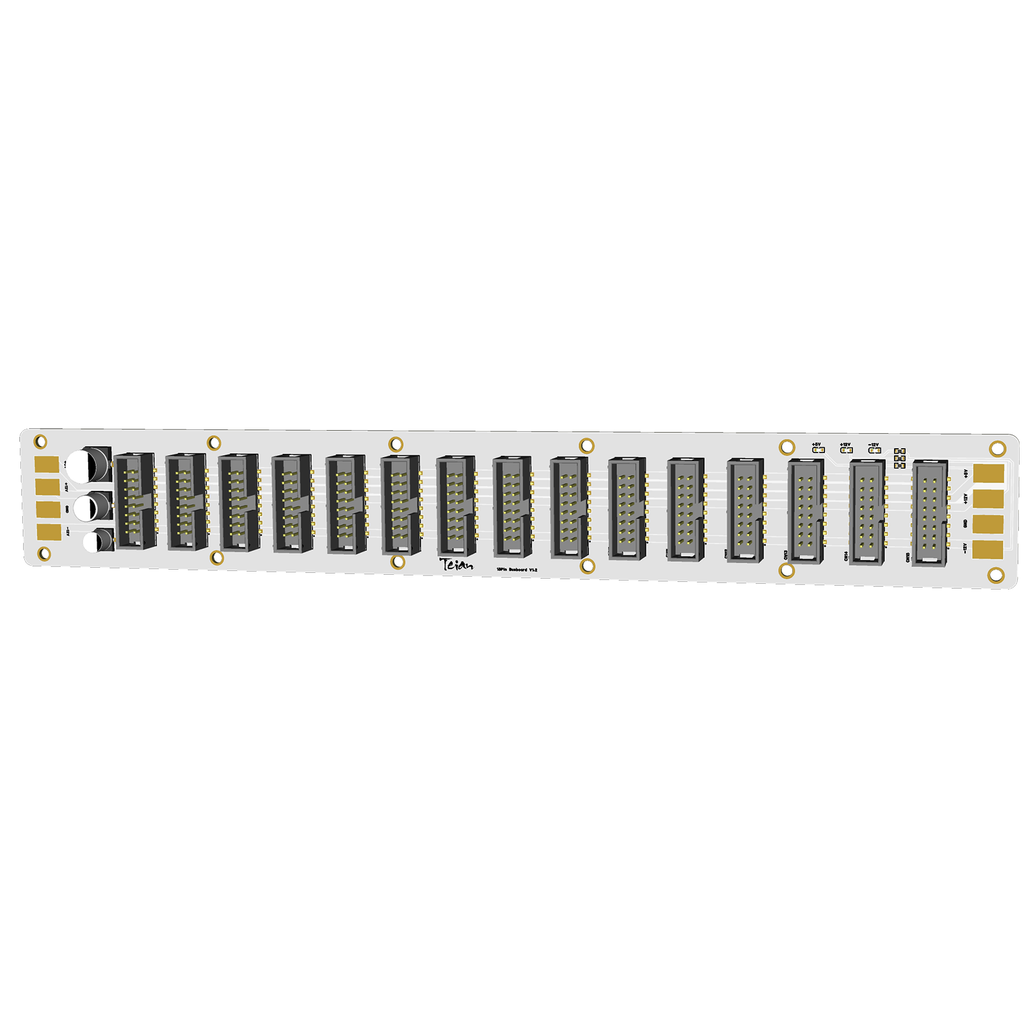

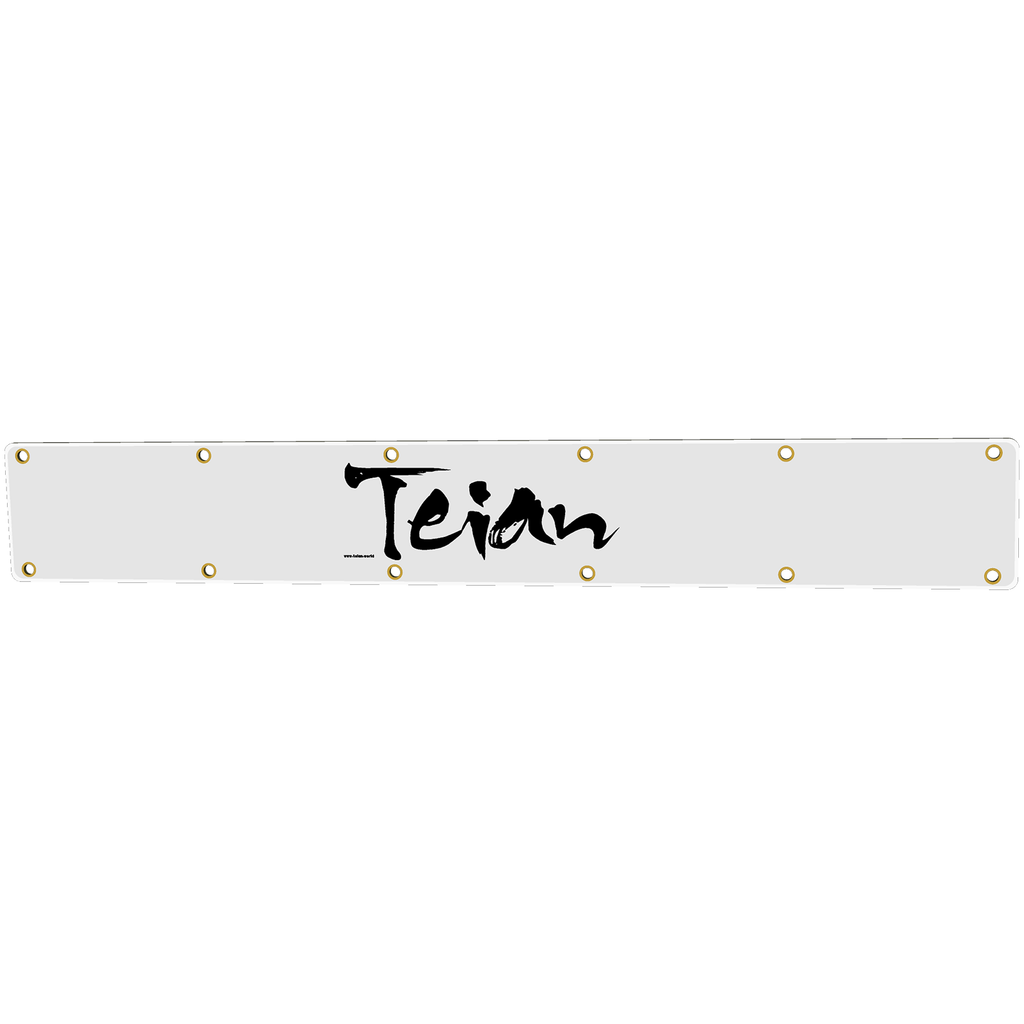

Teian 15-Pin Eurorack Busboard – Specifications
General Specifications
- Product Name: Teian 15-Pin Eurorack Busboard
- PCB Design: Full SMD (surface-mount device) design
- Mounting Holes: 12 × M3 screw holes (corner layout)
- Grounding Method: GND connected to chassis via M3 screws for proper grounding
- Voltage Rails: Multiple voltage rails (supports standard Eurorack voltages: +12V / -12V / +5V)
- Filtering: Each voltage rail equipped with filtering capacitors
- Status Indication: Independent LED indicator for each voltage rail
- Connection Method: Requires soldering for external connections or linking to sub-power boards
- Interface Type: 15-pin header connector (compatible with standard Eurorack bus systems)
- Application: Power distribution system for Eurorack modular synthesizers
Environmental Specifications
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +70°C
- Humidity: 10% – 90% RH (non-condensing)
Mechanical Specifications
- Dimensions: width 29.5cm × depth 1.1cm × height 4.2cm
- PCB Thickness: 1.6 mm (standard)
- PCB Design: Full SMD (no through-hole components on top side for low profile)
- Mounting: 12 × M3 screw holes or double-sided tape
- Grounding: Chassis ground connection
- Connector Type: 16-pin header (compatible with standard Eurorack bus cables)
- Connection: Wire soldering required
